Specifications:

• Travel: 200mm
• Spring: Coil (60lbs – optimal for 100–120kg rider weight)
• Adjustments:
• 18-Click High-Speed Compression
• 18-Click Low-Speed Compression
• 18-Click Rebound Damping
• Fork Legs: 2000 Series Aluminum
• Leg Diameter: 37mm
• Crown: Forged
• Steerer: 1-1/8" Straight (~28.5mm)
• Axle: 20×10mm | M14 | P1.5 | 170mm Length
• Brake Mount: 203mm Post Mount (Max 223mm)
• Caliper Mount Distance: 74mm
• Maximum Tire Size: 80mm
• Offset:
• 47mm (for 27.5”)
• 57mm (for 29”)
• Ride Height:
• 582mm (27.5”)
• 602mm (29”)
• E-Bike Compatible: Yes
• Extras: Threaded TSR (Steering Lock Option)
• Use Case: MTB, Downhill, Electric Dirt, DH, Sur-Ron, Talaria

 Compatibility:

• Sur-Ron Light Bee X
• Talaria Sting MX3 / MX4 / XXX
• Segway X160 / X260
• E Ride Pro SR / SS 3.0 / SS (19") / S (17")
• 79 Bike Falcon M

 Product Description

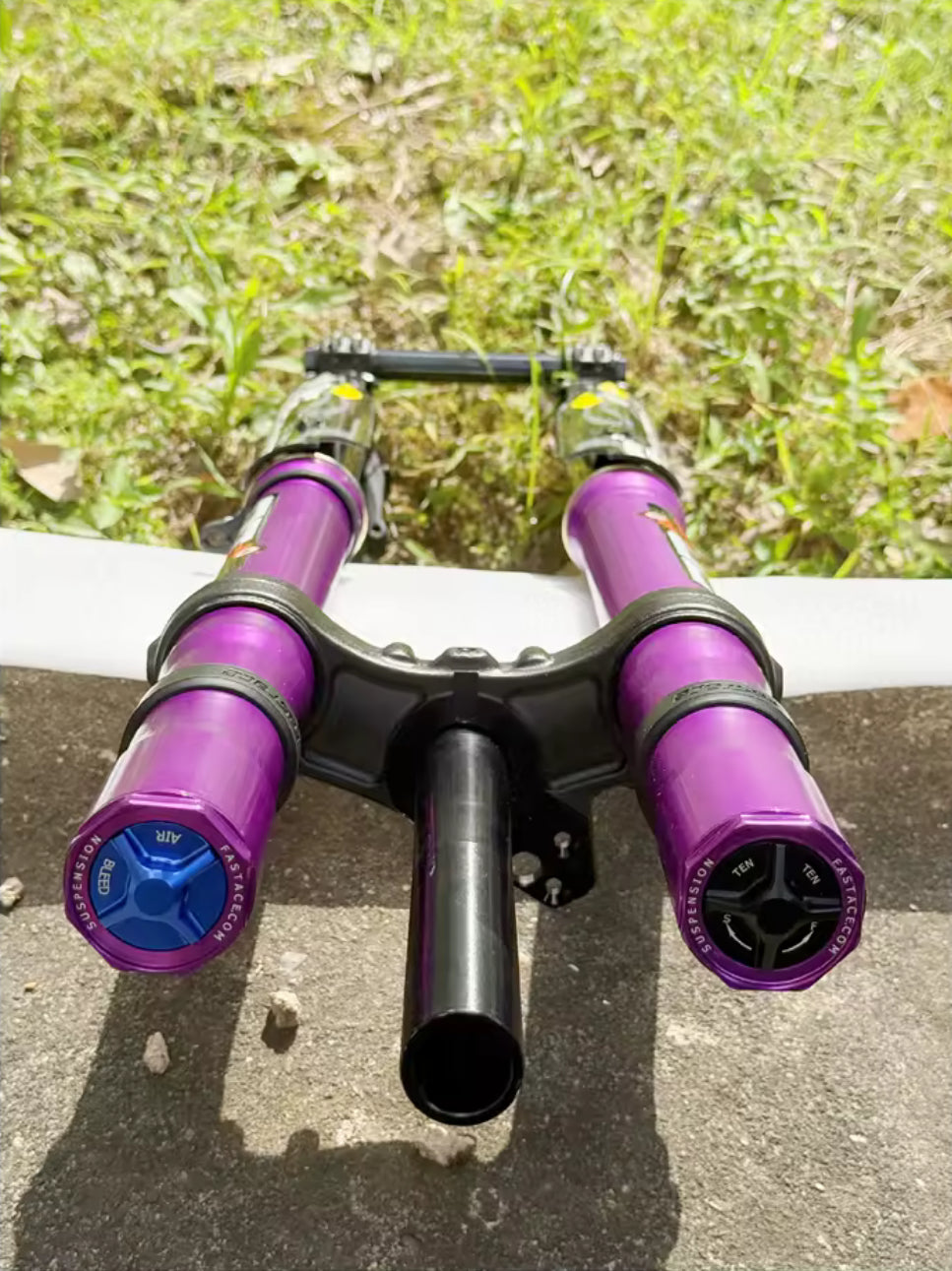

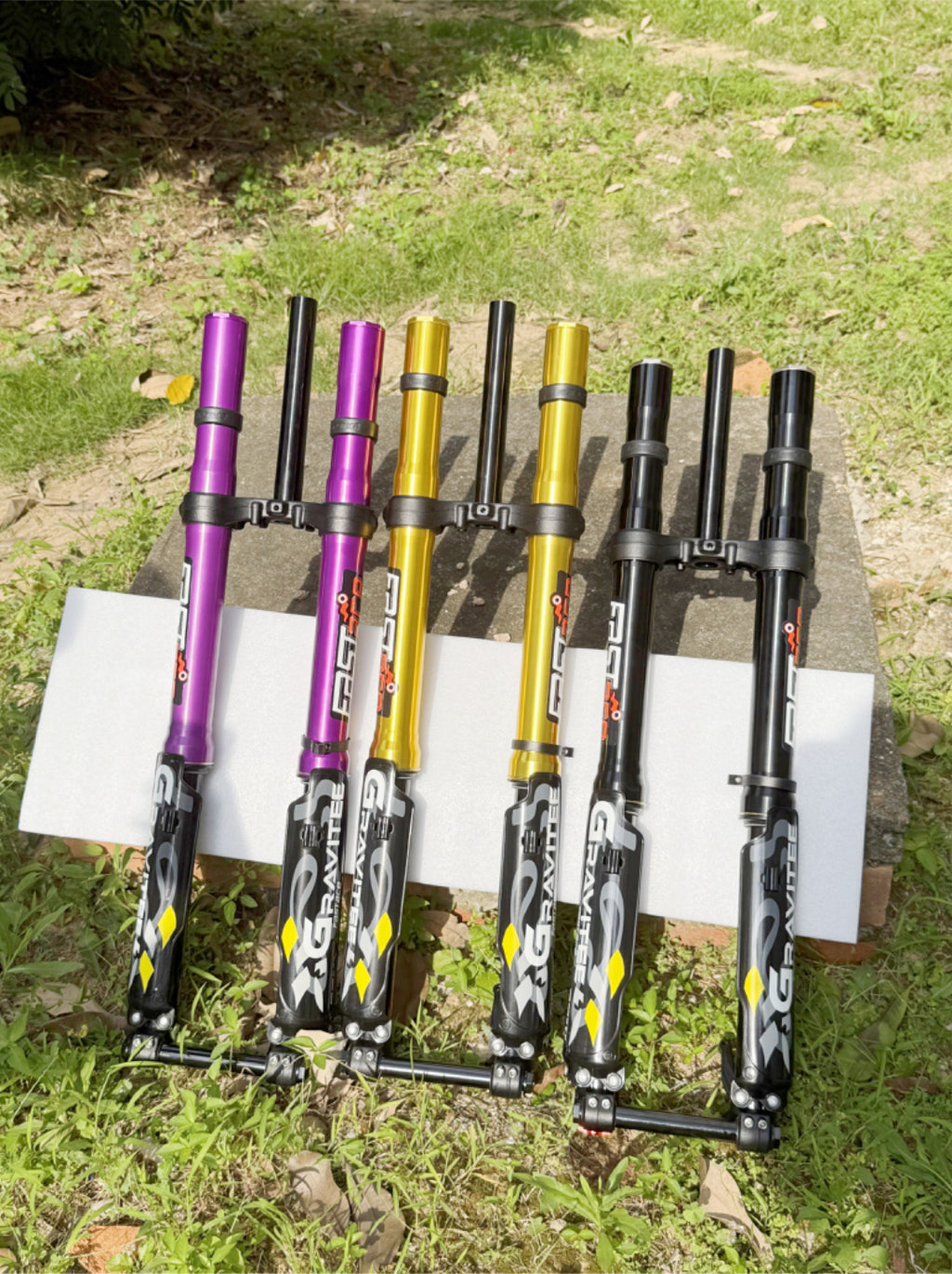

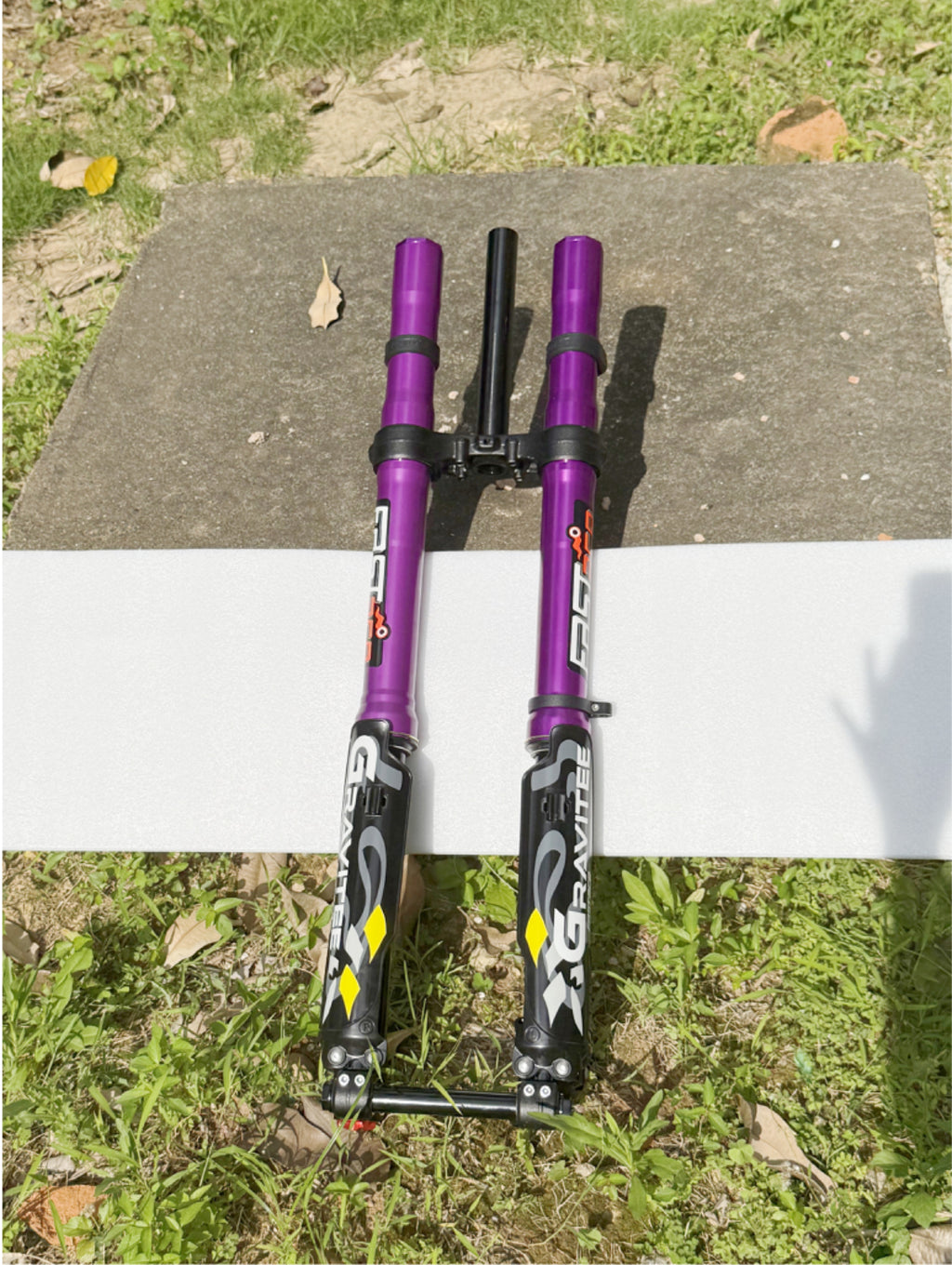

The Fastace AHX12RV 60lbs Coil Fork (Hand Twist Edition) is a top-tier suspension system built for electric dirt performance. Engineered from high-grade 2000 series aluminum with a forged crown, this fork offers precise adjustability across rebound, high-speed, and low-speed compression — giving serious riders the control needed to handle aggressive terrain. Designed specifically for e-bikes like the Sur-Ron, Talaria, and more, it balances responsiveness and durability while supporting riders in the 100–120kg range. Whether you're carving trails or dominating city runs, the AHX12RV delivers reliable, tunable suspension in a sleek, race-ready package.
